Select the HPL surface
Choose colour, texture and the required wear, scratch or stain performance for the selected HPL series. The listed HPL face range is 0.5–1.2 mm, with custom requirements reviewed for your order.
HPL MDF Manufacturer · Shuyang, China

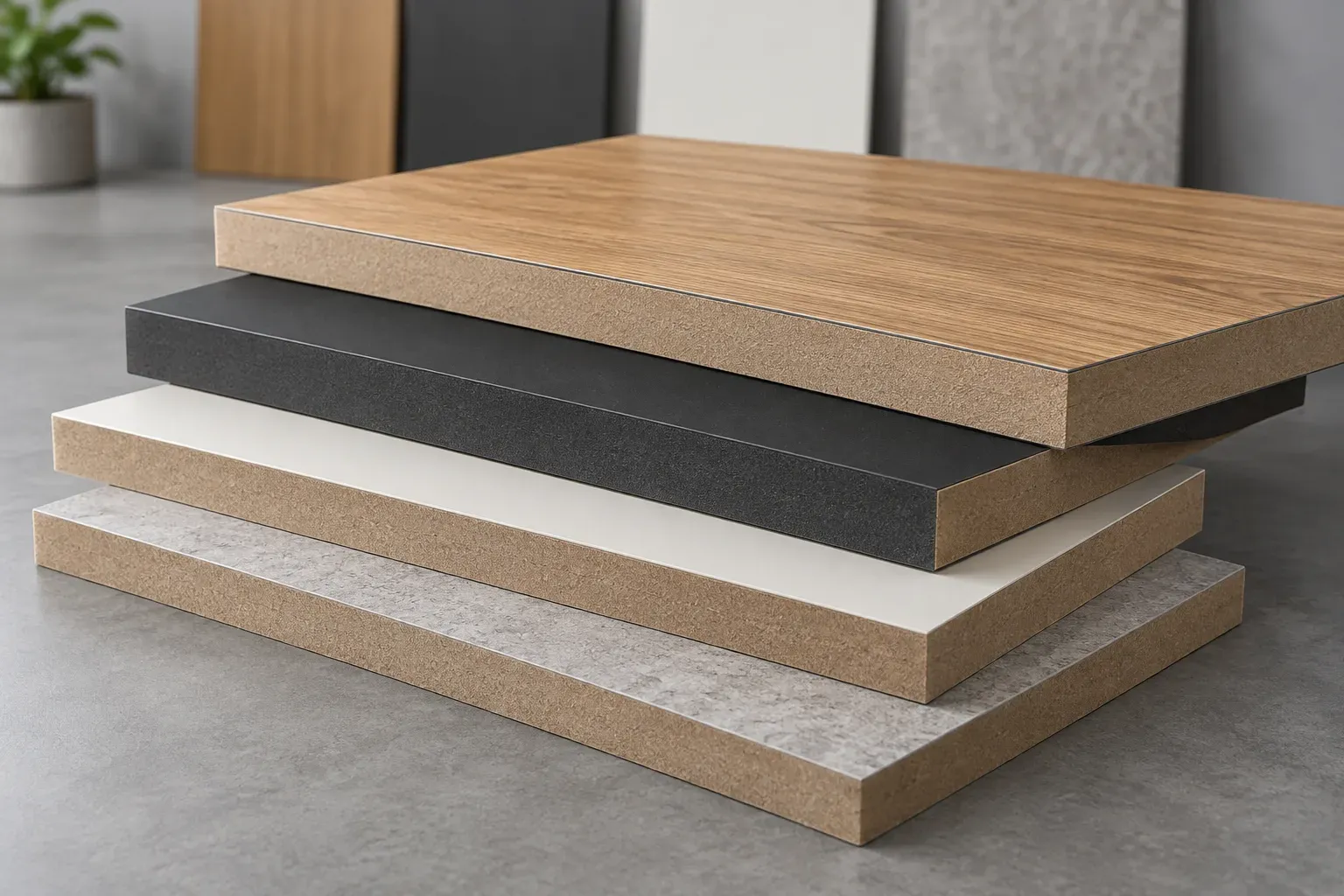

HPL faced MDF for furniture, counters and interiors.
Choose a hard decorative HPL surface on an MDF core for desks, counters, cabinets and retail fixtures. Our Shuyang factory supplies 0.5–1.2 mm HPL face sheets, selected colours and textures, and panels cut or machined for your project.
- Panel construction
- HPL face · MDF core
- Finish choices
- Colour · texture · gloss
Technical specification
HPL MDF Specifications
HPL MDF combines a separately manufactured high-pressure laminate sheet with an MDF core. Select the HPL finish, face thickness, reverse and edge construction for furniture and interior panels.
ThicknessMDF core 2–35 mm with nominal core thickness tolerance ±0.1 mm. HPL face sheets are available in nominal thicknesses from 0.5 to 1.2 mm. Final panel thickness includes the core, adhesive, HPL face and reverse construction.
SizeInput board formats1220 × 2440 mm; 2100 × 2800 mm; 1830 × 3660 mm; 1830 × 2440 mm; 2440 × 3660 mm; 1830 × 4200 mmFinished component dimensionsFollow the selected HPL format, complete construction, cut list and drawings.
DensityCUZI MDF core density range: 2–4 mm: 800–810 kg/m³; 5–8 mm: 780–800 kg/m³; 9–11 mm: 760–780 kg/m³; 12–18 mm: 680–750 kg/m³; 19–35 mm: 650–680 kg/m³.
GlueThe bonding system follows the selected product grade and construction.
Formaldehyde gradeE0, E0.5 and E1 options. Tell us your destination and required test standard so we can help you choose the board and supporting reports.
SurfaceHigh-pressure laminate on one or both MDF faces in nominal thicknesses from 0.5 to 1.2 mm. Colours, woodgrains, stone and material effects, textures and gloss levels can be selected or customized against the confirmed HPL reference and physical sample.
HPL constructionHPL provides wear, abrasion, scratch and stain resistance for the specified interior application. Standard and fire-retardant constructions are available; fire performance follows the HPL grade, MDF substrate, adhesive, classification and test report.
Finish and processing

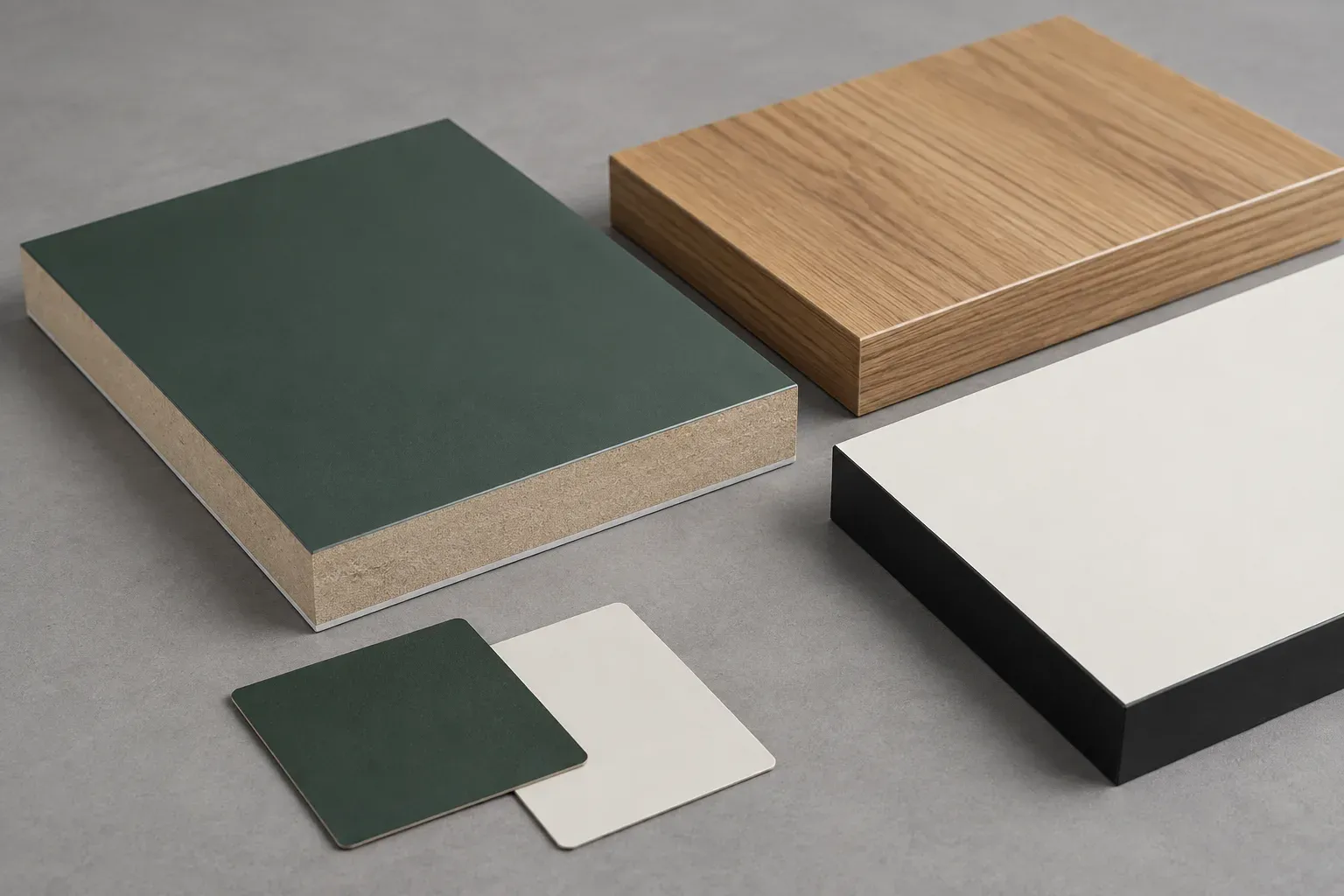

HPL face, balanced panel and finished edges
Specify the complete panel
Record MDF core, HPL, adhesive and reverse thicknesses separately. A compatible balancing back helps manage panel flatness.
Edges, machining and special grades
Send cutting and hardware details with the edge-band specification. Fire or moisture performance must cover the selected panel and its intended use.
Selection guide
HPL thickness, surface data and panel build-up
Read the HPL MDF selection guide
Choose the surface around the way it will be used
Give your furniture a finish that works as well as it looks. A reception counter sees repeated contact; a cabinet front brings colour and texture to the room. HPL MDF combines a separate high-pressure laminate face with an MDF core, so we can agree the decorative finish, surface grade, panel dimensions and machining for the component you are making.
Use the intended use to shortlist the HPL series. Then compare a physical sample in your room lighting and with the materials that meet its edges. For a desk or counter, request the surface data for horizontal use. For a furniture front, check the visible texture, gloss, pattern scale and the edge or corner detail. We keep the identified HPL reference with the sample and quote so your next order starts with the same finish.
| Your component | Surface and construction to specify | Useful sample to request |
|---|---|---|
| Desk or reception-counter top | Horizontal-use HPL grade, wear and scratch data, cleaning requirements, core, reverse and finished edges | Face sample plus a representative finished corner |
| Cabinet or wardrobe front | Colour, texture, gloss, pattern direction, finished thickness and hardware details | Face and cut-edge sample with the proposed edge band |
| Retail fixture or display surface | Expected contact, cleaning products, surface grade, component support and pack identification | Machined part or a sample of the visible edge detail |
| Interior panel with a fire requirement | Required classification, complete facing/core/bonding/reverse construction and installation | Identified sample and the report covering the proposed construction |
Our Melamine MDF page covers directly pressed decorative-paper faces. Laminated MDF covers the broader bonded-laminate family. Use the HPL and melamine comparison when deciding which surface to quote for adjoining parts of the same furniture range.
Specify the HPL face, bond lines, MDF core and reverse
HPL face-sheet thickness is 0.5–1.2 mm. It describes the separate laminate sheet, including its own laminate layers. The finished HPL MDF panel also includes the MDF core, the adhesive bond lines and the reverse HPL or agreed balancing layer. State each part of the build-up, then add the finished thickness and tolerance your assembly requires.
A dimensional example uses an 18 mm MDF core with 0.8 mm HPL on each face. The nominal material-layer sum is 18 + 0.8 + 0.8 = 19.6 mm before bond-line thickness and production tolerances. This is a calculation for specifying the build-up. The supplied finished thickness is agreed and measured separately; the MDF core's nominal ±0.1 mm tolerance applies to the core.
For a single decorative face, choose the reverse with the face and bonding process. Matching decorative HPL, a different HPL finish or an agreed balancing construction can suit different components. Give us the panel size, support and service conditions so the complete construction can be reviewed for flatness and handling. The laminated-panel construction guide expands this specification.
Compare the surface properties for your selected HPL series
Abrasion, scratching and staining describe different demands on the finish. Abrasion concerns repeated surface wear; a scratch test concerns marking; stain testing assesses the surface after specified substances and contact conditions. Choose the result that matches your furniture use and keep the series, decor, texture and thickness with the data. A glossy finish and a deeply textured finish can have different specified results within a collection.
The following test references show the information to request for each quoted HPL series. Formica's published thin-laminate datasheet provides an example of these EN 438 test headings. Your order uses the data and document revision for the actual offered HPL. We state its applicable value or class when the series is selected.
| Property | Test reference to identify in the offered series data | Record with the result |
|---|---|---|
| Surface wear / abrasion | EN 438-2.10, where that method is specified | Wear indicator or point, result and units, laminate grade, decor and finish |
| Scratch resistance | EN 438-2.25, where specified | Rating or result and method, surface texture and gloss |
| Stain resistance | EN 438-2.26, where specified | Substance group, exposure conditions and appearance rating |
| Dry or wet heat, when relevant | EN 438-2.16 / EN 438-2.18, where specified | Heat and contact conditions, appearance result and care guidance |
A higher laminate thickness alone gives an incomplete picture of surface performance. Read the grade and test results with the intended application, then use a sample with your cleaning and workshop process. If another test standard is required for the destination or buyer specification, include it in the document request so the proposed series can be checked against that requirement.
Match fire-retardant supply to the complete panel
Fire-retardant HPL MDF options are available. Send the required classification and test standard with the furniture or installation drawing. We match the HPL grade, MDF core, adhesive, reverse and panel thickness to the applicable report. Keep the report number, issue date, covered construction and installation conditions with the quoted specification.
A laminate classification describes the scope in its document. For the finished panel, check the facing, substrate and bonding arrangement as a complete construction; EGGER's laminate-classification explanation describes how the adhesive and substrate affect the overall rating. The document for your order should identify the proposed construction and any conditions on its use.
Reaction to fire and a fire-resistance period are different procurement requirements. State which your project needs. A wall assembly requiring a resistance period also needs its specified fixing, joints and supporting construction. Our Fire Rated MDF page covers fire-performance-led MDF selection, while the HPL quote brings that requirement together with the decorative face and finished-panel details.
Make your colour, texture and edges work together
Choose or customize solid colours, woodgrains, stone and material effects, texture and gloss. Send a manufacturer or collection reference, a colour target or a physical sample. We agree the proposed HPL reference and finish using an identified sample, with pattern direction and scale shown on the panel layout. For repeat orders, keep that sample and its agreed appearance range with the quote.
Bring the edge band into the same sample review. Specify its material, thickness, colour, corner radius and whether it matches or contrasts with the face. The finished dimensions and drawing show how the edging, holes and any exposed routed areas meet. A machined sample lets your team assess the face, reverse, edge and hardware fit together.
For retail fixtures, identify part IDs and sets or pack groups. For office furniture, add the top support, cable openings and visible edges. Send the cut list or drawings for CNC machining or cut-to-size components, with finished dimensions and critical tolerances.
Get a quotation for the panel you will receive
The current published HPL MDF price range is US$210–375 per m³. Your written quotation identifies the HPL series and finish, core, reverse, finished dimensions, quantity, material-volume basis and included facing, machining and packing. The selected construction, order quantity and delivery terms determine the formal offer. Review a prepared component on the complete delivered-cost basis, including its edges and processing.
| Include in your inquiry | What it helps us quote |
|---|---|
| HPL reference or sample, colour, texture, gloss and 0.5–1.2 mm facing choice | The selected decorative laminate |
| MDF core, reverse and required finished thickness | The complete panel construction |
| Dimensions, drawing revision, pattern direction, edges and quantity per part | Full panels or prepared components |
| Surface data and any fire or emission requirement | The product-specific document request |
| Packing, destination and requested timing | FOB terms, named port or place and the order schedule |
We reply within 12 hours. Samples are free and generally in stock; you pay the courier cost, which can be credited against a formal order. We confirm the chosen sample, dispatch and estimated transit time for your address, including preparation for a custom component. The quotation includes the specification, quantity, price and currency, packaging, trade terms, lead time, T/T or L/C payment conditions and validity.
Applications
Applications of HPL MDF
MDF for Kitchen Cabinets
Order MDF sheets, decorative panels, routed doors and cut or machined cabinet parts from our Shuyang factory. Choose the faces, visible edges, hardware holes and packing groups for your cabinet range.
Explore applicationMDF for Office Furniture
Order desk tops, meeting-table leaves, storage panels and drawer fronts for your office furniture range. Our Shuyang factory combines the selected board and surface with cut sizes, cable openings, hardware machining and labelled component packs.
Explore applicationMDF for Retail Fixtures
Supply your shopfitting team with slotted panels, shelves, counter fronts and drawing-based display parts. Our Shuyang factory coordinates the selected surface, slots, openings and store labels for repeat fixtures and phased fit-outs.
Explore applicationMDF for Hotel Furniture
Order MDF boards, decorative panels and machined parts for hotel headboards, wardrobes, desks and bedside units. Coordinate finishes, component quantities and labelled packs by room, floor or delivery phase.
Explore applicationBoards and components
HPL MDF photos and documents
Product documents for your order
Request surface-performance data for the chosen HPL and emissions information for the panel. For fire requirements, identify whether the report covers HPL, MDF core or the complete faced construction.
Made in Shuyang, China
From our factory to your workshop
Work with Shuyang Cuzi MDF Co., Limited on board selection, machining, inspection and export packing. Our factory has a total daily production capacity of 500 m³ across its operations.
Delivery, returns and warranty
- Delivery lead time
- 3–10 days
- Shipment
- By sea in containers
- Delivery terms
- FOB Qingdao / FOB Lianyungang, China
- Warranty
- 180 days
Made to order. The usual minimum is 1 × 20'GP per specification; mixed sizes or finishes are quoted together. Delivery lead time starts after specifications and terms are confirmed; sea transit is scheduled separately.
Freight is calculated for your ports and cargo quantity. Returns and exchanges, including timing and costs, are agreed in the order.
Delivery and freight terms · Returns and 180-day warranty · Packing and loading information
FOB China price
US$210–375 per m³
- Availability
- Available to order
Your quotation confirms the specification, quantity, packaging and final price.
Buyer FAQ
Your HPL MDF questions, answered.
How does HPL MDF compare with Melamine MDF and Laminated MDF?
HPL MDF uses a separately manufactured laminate sheet bonded to the core. Melamine MDF uses resin-impregnated decor paper pressed directly onto the board. HPL MDF belongs to the broader Laminated MDF family. Choose between them by the finish, intended use, selected surface grade and budget; we can quote the construction that fits your project.
Can I customize the HPL colour and texture?
Yes. Choose solid colours, woodgrains, stone and material effects, textures and gloss levels, or send your own finish reference. We confirm the available or customized HPL against a physical sample so you can see the colour and feel the texture before ordering. Pattern scale and direction can also be agreed for your parts.
How wear resistant is HPL MDF?
The hard HPL face provides resistance to abrasion, scratches, stains and everyday wear. The actual performance depends on the chosen laminate series and grade. Tell us whether the panel will be a horizontal desk or counter, or a vertical furniture face; we help match the wear grade and technical data to that use.
Can I order fire-retardant HPL MDF?
Yes. Share the fire classification and test standard your project requires. We confirm a suitable HPL grade, MDF core and adhesive, together with the applicable test report for that complete panel construction. The report's covered thicknesses and configurations determine which option suits the project.
Can both sides have an HPL finish?
Yes. You can choose matching or different HPL finishes on the two faces. For a single decorative face, we agree a suitable reverse HPL or balancing layer with the face and adhesive to help balance panel stresses and support flatness.
Can HPL MDF be used in humid interiors?
For a protected interior with humidity or occasional splashes, we select the MDF core and facing construction for the actual conditions. Sealed edges, holes and joints, a suitable reverse face and protection from prolonged water contact are part of the finished component design.
How can I request an HPL MDF sample?
Tell us the colour, texture or HPL reference you want to see and your delivery address. Samples are free and generally available from stock. You cover the courier cost, which can be credited against your formal order. We confirm availability, dispatch and estimated transit time for your chosen sample and destination.
Buyer guides
Practical guides for your MDF order.
HPL MDF vs Melamine MDF
Compare surface construction, wear requirements and costs for furniture and interior panels.
Read guideCDF, Compact Laminate and HPL MDF
Compare the panel cores, face materials and edge appearance before choosing your construction.
Read guideRetail Fixture MDF Guide: Slots, Modules & Installation
Plan MDF retail fixtures around slot geometry, fittings, supported shelves and brand finishes. Follow shared panel datums and a three-store installation schedule.
Read guideOffice Furniture MDF Guide: Tops, Hardware & Assembly
Specify MDF office furniture with finished top sizes, frame contacts, cable openings and hardware datums. Work through dimensions and a repeat component schedule.
Read guideLet's find the right HPL finish for your next project.
Share the look you want, panel sizes, quantity and destination. Add a sample reference or drawing if you have one. We'll reply within 12 hours with the next steps for your quote or free sample.
