Core, face and reverse
Choose the MDF grade and the finish on each side. Single- and double-faced supply is available, with the reverse and balancing construction specified together.
Melamine MDF Manufacturer · Shuyang, China
Melamine MDF for cabinets and furniture.
Bring your furniture finish into focus. We manufacture melamine-faced MDF in Shuyang, China, combining your chosen colour and texture with an MDF core for cabinets, wardrobes and interior panels.
- Panel construction
- Melamine face · MDF core
- Finish choices
- Colour · texture · gloss
Technical specification
Melamine MDF Specifications
Melamine faced MDF has resin-impregnated decorative paper pressed directly onto an MDF core. This thermally fused laminate (TFL) surface is supplied ready for cutting, edge banding and assembly.
Thickness2–35 mm; finish and core confirmed for the selected thickness.
Size1220 × 2440 mm2100 × 2800 mm1830 × 3660 mm1830 × 2440 mm2440 × 3660 mm1830 × 4200 mm. Custom sizes by order.
Density2–4 mm: 800–810 kg/m³5–8 mm: 780–800 kg/m³9–11 mm: 760–780 kg/m³12–18 mm: 680–750 kg/m³19–35 mm: 650–680 kg/m³.
GlueCore bonding and surface-adhesive construction follow the selected panel build.
Formaldehyde gradeE0, E0.5 and E1 options. Specify your destination and required test standard; request the report for the selected board.
SurfaceSolid colours, woodgrains and textures; single- or double-faced. Colour, texture and gloss matched to the agreed finish sample.
Decorative constructionDecorative MDF for protected interiors. Select core grade, face, reverse and edge finish for the application.
Thickness tolerance±0.1 mm nominal board thickness. Machined-part tolerances are agreed with your drawing.
Finish and processing
Core, faces and finished components
Cutting, drilling and edge banding
Send part sizes, quantities, grain direction and hole positions. Specify the edge-band material, colour, thickness and edges to cover for each component.
Humid interior furniture
For kitchens or bathroom furniture, select an appropriate moisture-resistant core. Seal edges and openings, and protect the finished component from standing water.
Choose your finish
White, black and woodgrain finishes
Choose a colour reference or send your own finish. A physical sample confirms the colour, texture and gloss for your order.
CU-U01 · Alpine White
White Melamine MDF
White decorative faces for carcasses, fronts and shelves; choose the tone, texture and gloss.
CU-U16 · Soft Black
Black Melamine MDF
A black decorative face over MDF. Match the reverse and edge banding to your furniture.
CU-W01 · Natural Oak
Woodgrain Melamine MDF
Printed woodgrain finishes. Coordinate pattern scale and grain direction across adjoining panels.
Read the Melamine MDF selection guide
Choosing between printed woodgrain and real wood? Compare melamine and veneered MDF for finish, matching and cost before selecting the panel face.
Specify the whole panel
Melamine MDF is supplied with a decorative face over an MDF core. White and black describe the surface colour; the cut edge shows the core. For exposed routed edges with colour throughout, compare Black MDF. For a real wood face, compare Veneered MDF.
| Panel detail | Include in your order |
|---|---|
| Face and reverse | Production decor reference, texture and gloss for each visible side; reverse or balancing construction |
| MDF core | Grade, thickness, sheet size, density and required emission standard |
| Grain layout | Grain direction and adjoining-panel arrangement, marked by part ID |
| Edge banding | Material, thickness, colour and the edges to cover on each part |
| Repeat orders | Previous order number, retained finish sample and any changed dimensions or quantities |
Catalogue codes help identify your shortlist. The quotation records the production decor and physical sample for the agreed colour, texture and gloss. Compare the face and edge band together under the lighting your furniture will use.
Match the finish to the furniture
For kitchen cabinets, select the core for the expected humidity and protect edges, joints and openings. For wardrobes, coordinate visible sides and grain direction across adjoining fronts. Read the decor and texture guide for comparing finishes and repeat batches.
Send your finish reference or existing sample, panel sizes, quantities, destination and any cut list. We confirm the face, reverse, edges and machining together in your quotation.
Applications
Applications of Melamine MDF
MDF for Kitchen Cabinets
Order MDF sheets, decorative panels, routed doors and cut or machined cabinet parts from our Shuyang factory. Choose the faces, visible edges, hardware holes and packing groups for your cabinet range.
Explore applicationMDF for Bathroom Furniture
Order moisture-resistant boards, vanity fronts, side panels and machined cabinet parts from our Shuyang factory. Choose the supplied finish and edge work around your basin and plumbing layout, with MR or HMR MDF selected for each component’s exposure.
Explore applicationMDF for Wardrobes
Build your wardrobe range with coordinated carcass panels, shelves, tall doors and backs. Our Shuyang factory supplies full boards, decorative panels or machined parts, with matched front pairs and cabinet-group packing for your assembly line.
Explore applicationMDF for Office Furniture
Order desk tops, meeting-table leaves, storage panels and drawer fronts for your office furniture range. Our Shuyang factory combines the selected board and surface with cut sizes, cable openings, hardware machining and labelled component packs.
Explore applicationMDF for Retail Fixtures
Supply your shopfitting team with slotted panels, shelves, counter fronts and drawing-based display parts. Our Shuyang factory coordinates the selected surface, slots, openings and store labels for repeat fixtures and phased fit-outs.
Explore applicationMDF for Hotel Furniture
Order MDF boards, decorative panels and machined parts for hotel headboards, wardrobes, desks and bedside units. Coordinate finishes, component quantities and labelled packs by room, floor or delivery phase.
Explore applicationMDF Furniture Components
Furniture panels and shaped parts supplied as sheets or machined components, with part IDs and packing groups for assembly.
Explore application
Boards and components
Melamine MDF photos and documents
Core, finish and emissions documents
Request the selected MDF core data, emissions documents and available surface-performance information for your panel and destination.
Production video and product photos
Melamine MDF production and surface finishes.
See our white-faced boards on the production line, then explore solid-colour and woodgrain finishes for your furniture.

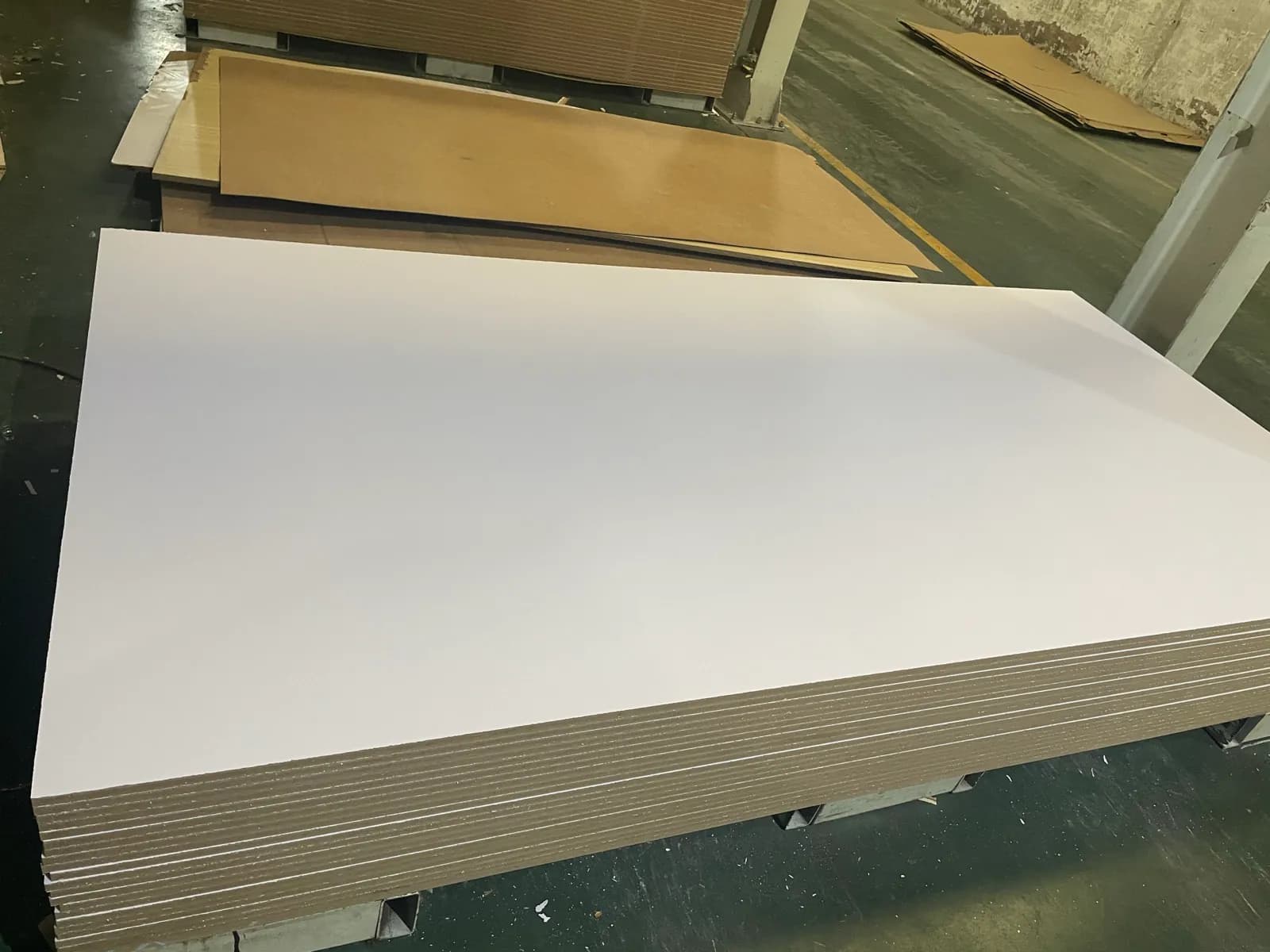

White Melamine MDF handling and stacking
White-faced boards are lifted and stacked at our Shuyang factory, ready for cutting, edge banding and assembly.
Made in Shuyang, China
From our factory to your workshop
Work with Shuyang Cuzi MDF Co., Limited on board selection, machining, inspection and export packing. Our factory has a total daily production capacity of 500 m³ across its operations.
Delivery, returns and warranty
- Delivery lead time
- 3–10 days
- Shipment
- By sea in containers
- Delivery terms
- FOB Qingdao / FOB Lianyungang, China
- Warranty
- 180 days
Made to order. The usual minimum is 1 × 20'GP per specification; mixed sizes or finishes are quoted together. Delivery lead time starts after specifications and terms are confirmed; sea transit is scheduled separately.
Freight is calculated for your ports and cargo quantity. Returns and exchanges, including timing and costs, are agreed in the order.
Delivery and freight terms · Returns and 180-day warranty · Packing and loading information
FOB China price
US$190–380 per m³
- Availability
- Available to order
Your quotation confirms the specification, quantity, packaging and final price.
Buyer FAQ
Your Melamine MDF questions, answered.
How is Melamine MDF different from HPL MDF?
Melamine MDF has decorative paper pressed directly onto its core. HPL MDF uses a separately manufactured high-pressure laminate sheet bonded to the board. Compare the appearance and surface-performance requirements for your furniture.
Does white or black Melamine MDF have a coloured core?
White and black describe the decorative face. The cut edge shows the selected MDF core until it is finished or edge-banded. For colour through exposed routed edges, choose the separate Black MDF product.
Can I request a free Melamine MDF sample?
Yes. Send your finish reference, thickness and delivery address. Product samples are free; you pay the courier charge, which can be credited against a formal order. We confirm the requested sample and dispatch timing.
How do I match a custom finish or repeat an order?
Send your existing finish sample, or the previous order number and retained sample reference. We compare the production decor, texture, gloss and agreed colour variation under consistent lighting, and record any changes with the new order.
How do I choose matching edge banding?
Compare the face and edge-band samples together for colour, texture and gloss. Specify band material, thickness and the edges to cover, then check the finished corner and edge on a component.
Can Melamine MDF be used in kitchens and bathrooms?
Choose the MDF core grade for the expected humidity. The completed component needs sealed edges, joints and openings, suitable detailing and protection from standing water; the decorative face alone does not make a panel waterproof.
Can you supply panels ready for assembly?
We offer cutting, drilling, hinge boring and edge banding to your cut list or drawings. Include part IDs, quantities, grain direction and hardware positions. The quotation confirms finished dimensions, tolerances and the supplied processing stage.
What documents and inspection can I request?
Request selected-core data, emissions documents and any surface-performance information needed for your panel and destination. We confirm which construction the documents cover. Third-party inspection can be arranged before shipment.
Buyer guides
Practical guides for your MDF order.
17 mm Melamine Slatwall Panels: Pre-Shipment Inspection
See the white and brown slatwall panels, T-slot profiles, aluminium channels and fitting checks from a 980-panel order inspected in Suqian on 20 October 2026.
Read guidePacking Decorative MDF Panels for Export
Protect decorative MDF faces and edges during export. Plan separators, covers, supports, labels and loading around your panel sizes and delivery route.
Read guideMixed MDF Orders: A Planning Guide for Distributors
Plan a mixed MDF order for your stock range. Compare products, quantities, minimum orders, pack sizes and delivery costs before requesting a quote.
Read guideOrdering Melamine MDF in Multiple Colours and Finishes
Plan a melamine MDF order with several colours and finishes. Use samples, quantities and packing groups to keep your furniture range coordinated.
Read guideMDF Repeat Orders: Keep Furniture Parts Consistent
Keep MDF furniture parts consistent across repeat orders. Plan drawing changes, matching finishes, samples and packing with a practical reorder example.
Read guideLet's find the finish for your next order.
Send your preferred colour or sample reference, thickness, sizes, quantity and destination. We'll reply within 12 hours to help with a free sample or a written quote.
